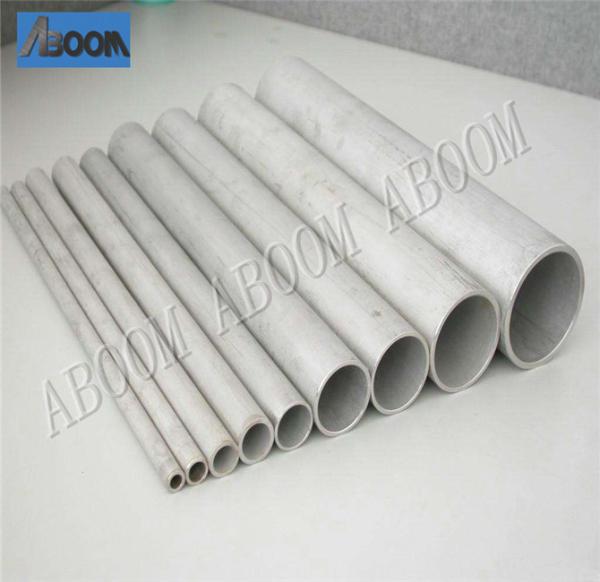

    Seamless Duplex Stainless Steel Pipe Duplex 2205 Tube 2205 UNS S32205

    Ask Lasest Price
    Brand Name : ABOOM
    Model Number : S32205
    Certification : EN 10204 Type 3.1
    Price : USD Negotiable
    Payment Terms : T/T
    Supply Ability : 200 TONS per month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Seamless Duplex Stainless Steel Pipe Duplex 2205 Tube 2205 UNS S32205

    Seamless Duplex Stainless Steel Pipe Duplex 2205 Tube 2205 UNS S32205


    S32205 Duplex Stainless Steel Seamless Pipe Pren ≥34.0 2205


    UNS S32205 ( 2205) 22% chromium duplex stainless steel


    Specifications of the Duplex Stainless Steel Seamless Pipe:


    Outer diameter Φ6—630mm
    wall thickness: 1-50mm
    maximum length 18000mm
    Special specifications are available upon negotiation.

    Implementation standards:


    ASTM A789 (ASME SA789)
    ASTM A790 (ASME SA790)
    ASTM A928 (ASME SA928)

    Material: S31803 / S32205, S32750, S32760, S31500, S31500, 32001, S32003, S32304


    Chemical Composition
    (%)
    Mechanical properties
    TypeUWSCCrNiMoCuNTensile strength ≥ ksi (Mpa)Yield Strength ≥ ksi (Mpa)Elongation
    Grade2in or
    50mm, %
    low alloyS315000.0318.0-19.04.50-5.252.5-3.00.05-0.1092(630)64(440)30
    S320010.0319.5-21.510-3.00.601.000.05-0.1790(620)65(450)25
    S320030.0319.5-22.53.0-4.01.5-2.00.14-0.2090(620)65(450)25
    S323040.0321.5-24.53.0-5.50.05-0.600.05-0.600.05-0.2087(600)65(450)25
    Medium alloyS318030.0321.0-23.04.5-6.52.5-3.50.08-0.2090(620)58(400)25
    S322050.0322.0-23.04.5-6.53.0-3.50.14-0.2095(655)65(450)25
    High alloyS325500.0424.0-27.04.5-6.52.9-3.915-2.50.10-0.25110(760)70(485)15
    Super DSSS327500.0324.0-26.06.0-8.03.0-5.00.50.24-0.32116(800)80(550)15
    S327600.0524.0-26.06.0-8.03.0-4.00.5-100.20-0.30109(750)80(550)25

    Performance characteristics:
    1. Excellent resistance to general corrosion and local corrosion, especially stress corrosion resistance, pitting corrosion resistance, crevice corrosion resistance, corrosion fatigue resistance and wear resistance etc.
    2. Good solderability
    3. Good comprehensive mechanical properties
    4. Good resistance to intergranular corrosion
    5. High cost performance and long service life


    Application fields are:


    2205 duplex stainless steel pipe is defined as smelting and manufacturing of stainless steel in which the ferrite phase and austenite are 50% each in comparison with the solidified structure. The actual comparative example is that ferrite accounts for 45-55%, and the corresponding austenite accounts for 55-45%. The excellent performance of 2205 duplex stainless steel is ensured by a proper proportion of the two-phase structure.


    2205 duplex stainless steel pipe has excellent mechanical properties and corrosion resistance, as well as good weldability, and has a wide range of uses in the oil and gas industry, marine engineering, chemical industry and other industries. The oil and gas industry uses duplex stainless steel materials to lay oil and gas pipelines with a length of more than 850Km, most of which are 2205 duplex stainless steel seamless steel pipes (also some are S31803 duplex stainless steel pipes and 2507 duplex stainless steel pipes); Due to the strong corrosiveness of the natural gas medium, the high-pressure pipelines are made of 2205 duplex stainless steel.

    Delivery form:Sheet, strip, bar, pipe (welded and seamless pipe), wire, forging, light rod, flange, welding
