LJ LF SE F51 S31803 Duplex Stainless Steel Butt Welding Ring Loose
Flange
LJ / LF / SE F51 / S31803 Duplex Stainless Steel Flanges 22%Cr Pren
≥34.0
F51 (UNS S31803) 22% chromium duplex stainless steel

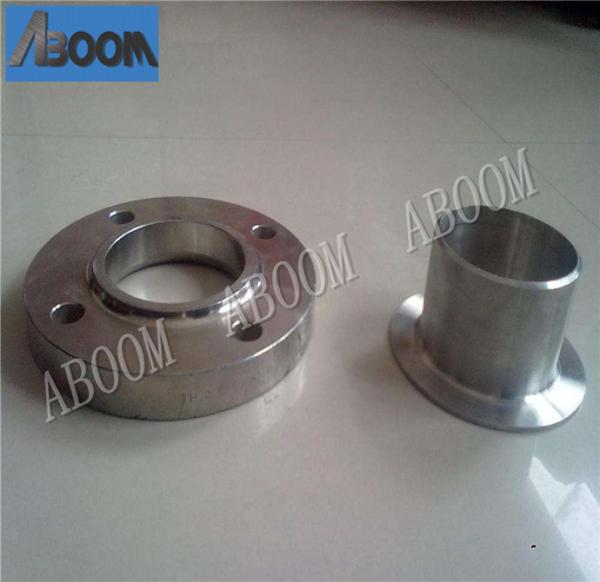

Product Name:F51 / S31803 Duplex Stainless Steel Butt welding ring loose flange
Product material:F51 / S31803
Product type: LJ / LF / SE
Product use: interconnected parts between pipe and pipe
Product specifications: 1/2”-24”
Special functions: easy welding, good toughness, corrosion resistance
Surface treatment: Precision turning
Executive standards: SA182 / ASMEB16.5 / 16.7 / GB9112-9131
Pressure rating : 150 # 300 # 400 # 600 # 900 # 1500 # 2500 #
Type content: according to customer requirements (LOGO + standard + material +
size + pressure + furnace number, etc.)
Non-standard customization: samples can be customized according to customer requirements
General attributes:
Duplex stainless steel has an α + γ dual-phase structure, so its
performance characteristics are built of austenitic stainless steel
and ferritic stainless steel. It is a type of stainless steel with
high strength and best corrosion resistance. Generally, in the case
of low C content, the Cr content is 18% to 28%, and the Ni content
is 3% to 10%. Some steels also contain alloying elements such as
Mo, Cu, Nb, Ti, and N.
Compared with ferrite, it has higher plasticity and toughness, no
room temperature brittleness, significantly improved intergranular
corrosion resistance and welding performance, while maintaining the
475 ° C brittleness and high thermal conductivity of ferritic
stainless steel, and has superplasticity, etc. Features. Compared
with austenitic stainless steel, the yield strength is
significantly improved, and the resistance to intergranular
corrosion, stress corrosion, corrosion fatigue and abrasion is
significantly improved.
Material: S31803 / S32205, S32750, S32760, S31500, S31500, 32001, S32003,
S32304
| Chemical Composition
(％) | Mechanical properties | |
|
| Type | UWS | C≤ | Cr | Ni | Mo | Cu | N | Tensile strength ≥ ksi (Mpa) | Yield Strength ≥ ksi (Mpa) | Elongation |
| Grade | 2in or |
| 50mm,≥ % |
| low alloy | S31500 | 0.03 | 18.0-19.0 | 4.50-5.25 | 2.5-3.0 | … | 0.05-0.10 | 92(630) | 64(440) | 30 |
| S32001 | 0.03 | 19.5-21.5 | 10-3.0 | ≤0.60 | ≤ 1.00 | 0.05-0.17 | 90(620) | 65(450) | 25 |
| S32003 | 0.03 | 19.5-22.5 | 3.0-4.0 | 1.5-2.0 | … | 0.14-0.20 | 90(620) | 65(450) | 25 |
| S32304 | 0.03 | 21.5-24.5 | 3.0-5.5 | 0.05-0.60 | 0.05-0.60 | 0.05-0.20 | 87(600) | 65(450) | 25 |
| Medium alloy | S31803 | 0.03 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | … | 0.08-0.20 | 90(620) | 58(400) | 25 |
| S32205 | 0.03 | 22.0-23.0 | 4.5-6.5 | 3.0-3.5 | … | 0.14-0.20 | 95(655) | 65(450) | 25 |
| High alloy | S32550 | 0.04 | 24.0-27.0 | 4.5-6.5 | 2.9-3.9 | 15-2.5 | 0.10-0.25 | 110(760) | 70(485) | 15 |
| Super DSS | S32750 | 0.03 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | ≤0.5 | 0.24-0.32 | 116(800) | 80(550) | 15 |
|
| S32760 | 0.05 | 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.5-10 | 0.20-0.30 | 109(750) | 80(550) | 25 |
Performance characteristics:
1. Excellent resistance to general corrosion and local corrosion,
especially stress corrosion resistance, pitting corrosion
resistance, crevice corrosion resistance, corrosion fatigue
resistance and wear resistance etc.
2. Good solderability
3. Good comprehensive mechanical properties
4. Good resistance to intergranular corrosion
5. High cost performance and long service life
Delivery form:Sheet, strip, bar, pipe (welded and seamless pipe), wire, forging,
light rod, flange, welding
