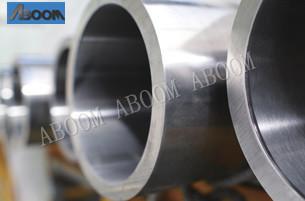

N08925 Incoloy Alloy Seamless Tube For Oil Gas Drilling Equipment Components
Incoloy 925 (N08925) alloy seamless tube for Parts and components on oil and gas drilling equipment
Material designation: Incoloy 925 nickel based alloy
US grade: UNS N08925
Incoloy 925 (N08925) Nickel Based Alloy Overview:
The Cr content in Incoloy 925 (N08925) nickel-based alloy is
usually 19.5-23.50%, and the nickel content is 42.0-26.0%. Incoloy
925 (N08925) alloy is a nickel-based alloy containing molybdenum
and copper, which has good hot and cold workability
Chemical composition of Incoloy 925 (N08925) nickel based alloy: see Table-1:
Table-1 %
C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≥ | Ni≥ | Mo≥ | Cu≤ |
0.03 | 0.50 | 1.00 | 0.030 | 0.030 | 19.5-23.5 | 42.0-46.0 | 2.5-3.5 | 1.5-3.0 |
Others | N≤ | Al≤ | Ti≤ | Fe≤ | Co≤ | V≤ | W≤ | Nb≤ |
- | - | - | Balance | - | - | - | - |
specification:
Outer diameter Φ6—762mm; wall thickness: 0.5-50mm, maximum length
18000mm
Special specifications are available upon negotiation.
![]() |
